Ever since I set out to write my first game engine four years ago (and subsequently threw in the towel), I’ve been reluctant to try anything similar (not counting Glint renderer, which was intentionally much smaller in scope). I’m sure I’ll write another engine some day, but probably only when I have more experience and an end goal that really justifies the work (whether that’s a particular game spec or just a type of game that the engine should excel at).

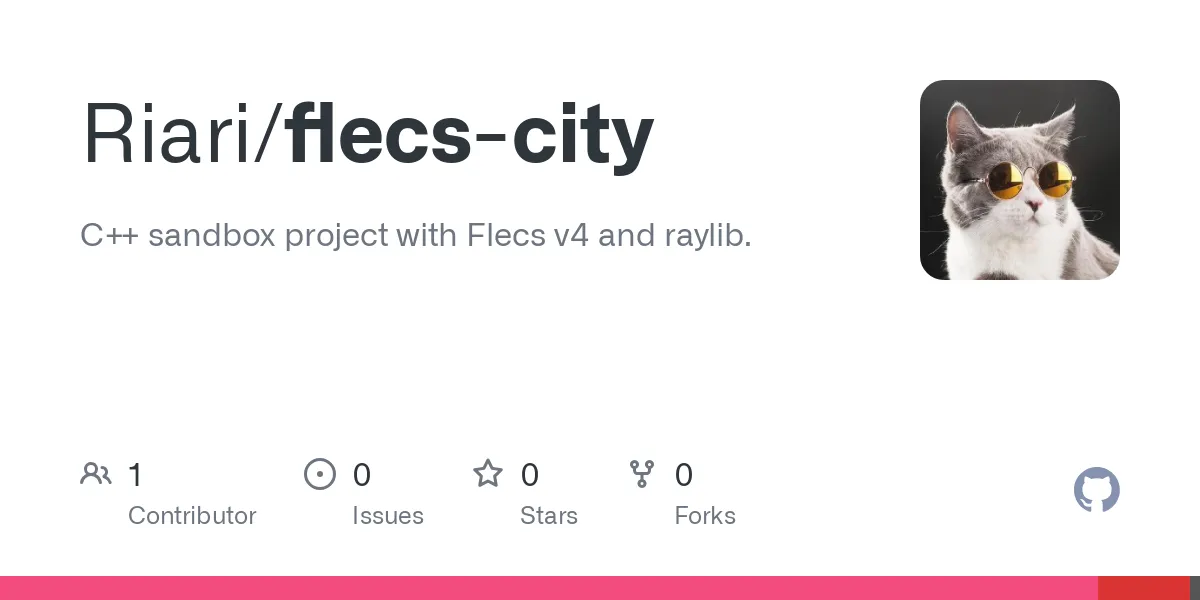

In the meantime, I want to keep learning about game engine architecture without getting lost in the weeds trying to figure out how to write most of the code from scratch. To that end, I decided to spin up a new project: Flecs City.
Flecs City is a sandbox project written in C++. I gave it that name because one of my long term goals is to learn more about Flecs (a popular ECS framework for C and C++), and to do so I decided I would implement traffic simulation in a city environment using the ECS paradigm.
To be clear, it’s not a game engine (although it will have some of the things you might expect to see in one). It’s not even a game as such. There’s no game design and I have no plans to add any interesting mechanics or interactivity outside of basic camera controls and a debug UI. It’s purely an engineering playground.
Aside from Flecs, I settled on the following libraries:
- raylib for window creation and rendering (I still have a lot of interest in graphics programming, but I’ve written a few basic renderers at this point and would like to focus on other things)
- GameNetworkingSockets for netcode
- spdlog for logging
- args for argument parsing
For dependency management, I ended up using vcpkg. There isn’t really a de facto dependency manager in C++, but vcpkg is quite popular and supports a wide range of libraries.
For building, I chose CMake (paired with Ninja). I don’t particularly like CMake—I think it’s clunky and I’m not a fan of its DSL (its lack of types is especially off-putting)—but it has been around for long enough to firmly establish itself as the go-to build system generator in the C++ community. I tried to migrate to Bazel instead, but in the end, CMake was the much easier option and has so far proven very low-friction alongside vcpkg.
What I’ve built so far
At the time of writing, the project builds on Windows and consists of:
- raylib integration with window creation
- Flecs integration
- A module system for adding ECS code in a modular fashion
- A “Core” module that does some rendering using raylib functions
- GameNetworkingSockets integration with rough server and client implementations based on the ones in the GNS chat example
- spdlog integration
- Some wrappers around argument parsing and application stuff
- Server/client/monolith runtime modes
Modules are built as shared libraries. There was no particular need to implement them that way and it does complicate things (for example, most of the third-party libraries have to be built as shared libraries so they can be shared by the modules), but I wanted to explore a fully modular approach and I think this, along with the conventions set by Flecs, might help with code organisation.
What’s next
One of the first things I did was define a list of things I want to implement, which currently looks like this:
- 🔴 Should (things I should do first)
- DONE Basic camera with WASD and mouse controls
- DOING Networking foundation
- WAITING Plane to draw stuff on
- WAITING Roads
- WAITING Buildings
- WAITING Vehicles
- WAITING Models (use existing assets)
- WAITING Movement with basic AI
- 🟠 Would (things I’ll do once most/all of the above items are done)
- WAITING Traffic lights
- WAITING ImGui debug UI
- WAITING Parameters to adjust traffic behaviour
- 🟢 Could (things I could do eventually)
- WAITING Player-controlled vehicles
- WAITING Street lights
- WAITING Day/night cycle
- WAITING World time speed controls
- WAITING Better vehicle and building models
- WAITING Pedestrians
- WAITING Models (use existing assets)
- WAITING Movement with basic AI
- WAITING Pedestrian crossings
(Note: I wrote this list in Logseq, where the DONE/DOING/WAITING keywords signify task status.)
I’ve no doubt this will change a lot as my interests and motivation change. In fact, I already moved a few things like networking up the list because I was keen to explore them straight away.
I expect I won’t get through more than about 50% of it in the long run, but one of the advantages of a malleable, open-ended project like this is I can put as much or as little time into it as I want without disappointing myself for not building a “game engine” or “game”. I’ve already learned several things, so anything else I learn from here onwards is a bonus!
As shown in the list, my current focus is on getting some of the groundwork for netcode implemented. Since I’m using GameNetworkingSockets, the lower-level interaction with socket APIs is abstracted away, so this is mostly a matter of adding boilerplate to manage connections and some basic data transfer. Unfortunately, I might have to put that effort on hold because of a bug in GNS (or one of its dependencies) on Linux, which I reported here. This isn’t exactly blocking my progress because the library works fine on Windows and I can easily continue development there, but I would like to target both Windows and Linux at a minimum, so I may have to consider switching to a different library.
In the next post, I’ll get into some of the code I’ve written. Hopefully by then I will have solved the Linux issue. Thanks for reading!
